Description
| Processor | Intel Core Ultra 7-255H Processor (2.0 GHz, up to 5.1 GHz Turbo Boost), 16 cores / 16 thread, 24MB Cache, TDP: 28W Intel Core Ultra 5-225H Processor (1.7 GHz, up to 4.9 GHz Turbo Boost), 14 cores / 14 thread, 18MB Cache, TDP: 28W |
|---|---|
| Memory | Supports Dual Channel DDR5 Two 262 Pin SODIMM sockets, support for DDR5 up to 5600MHz (Real operation frequency depends on processor and memory module) Expandable up to 96GB, depends on 8GB/16GB/32GB/48GB SODIMM module. |
| Display | 16” FHD+ (1920×1200) Wide View Angle, Matte Finished |
| Graphics Processor |
Intel ARC Graphics (based on system with dual DDR5 and total memory capacity above 16GB) Intel Xe Graphics (based on system with single DDR5, or total memory capacity not reach 16GB) |
| Storage | Two M.2 2280 SSD, PCIe Gen 4×4 interface |
| Audio System | High Definition audio interface Built-in Array Microphone 2 Built-in Speakers |
| Pointing Device | Integrated Click pad with Microsoft PTP multi-gesture and scrolling function |

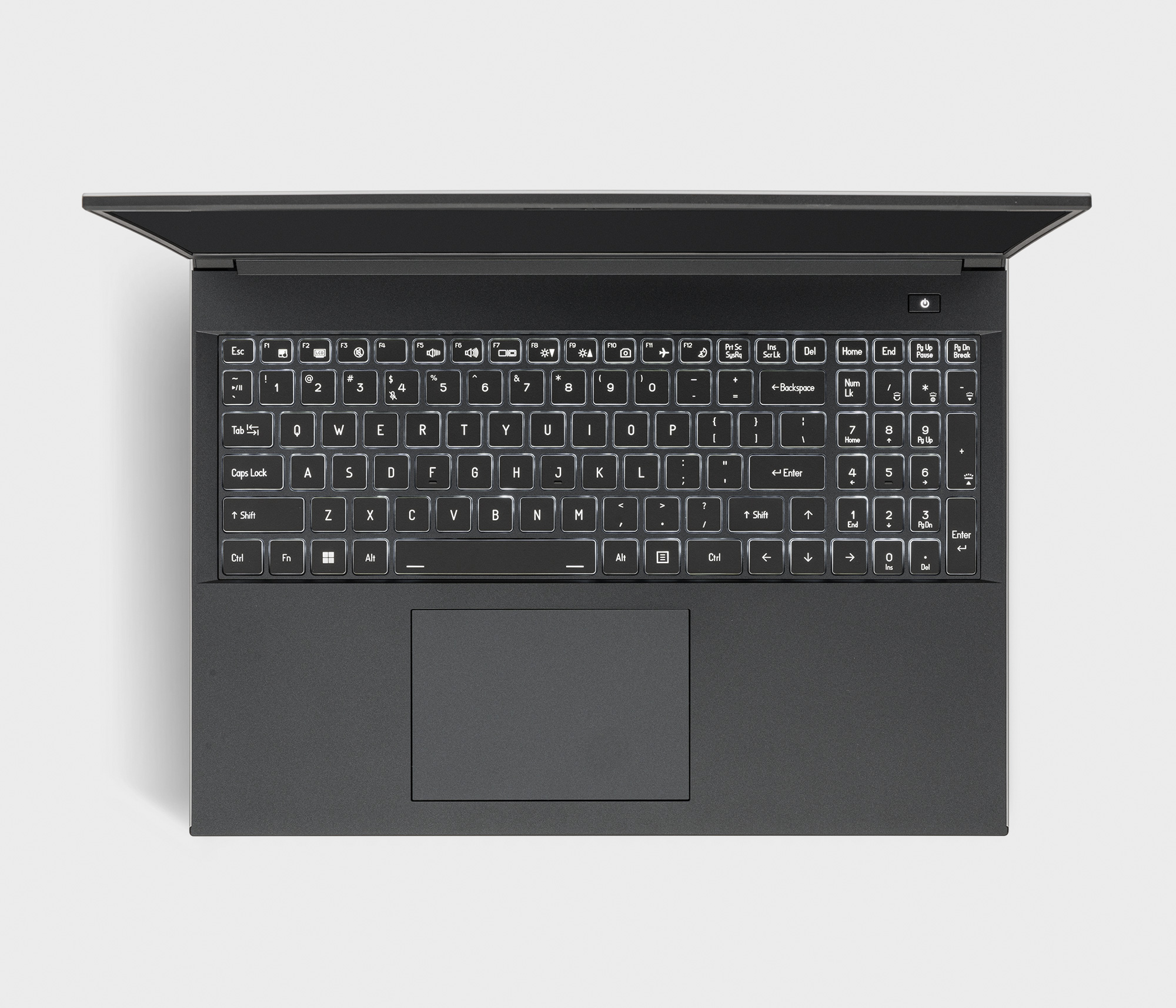

| Keyboard | Multi languages, White Color illuminated full size isolated keyboard with numeric pad |
| I/O Ports | 1 HDMI output Port (with HDCP) 1 Thunderbolt 4 combo port with Power Delivery DC in (Type C) 1 USB 3.2 Gen 2 Port with Power Delivery DC in (Type C) 1 USB 3.2 Gen 2 Port (Type-A) (1x Powered USB port, AC/DC) 1 USB 3.2 Gen 1 Port (Type-A) 1 2-in-1 Audio Jack (Headphone / Microphone) 1 RJ-45 LAN (10/100/1000Mbps) |
| Card Reader | Micro SD Push-Push Card reader |
| Slots | Three M.2 Card Slots – 1st for WLAN Combo M.2 2230 Card with PCIe and USB interface – 2nd for SSD M.2 2280 Card with PCIe Gen 4×4 interface – 3rd for SSD M.2 2280 Card with PCIe Gen 4×4 interface |
| Communication | Built-in Gigabit Ethernet LAN Intel Wireless Wi-Fi 7 BE200 + Bluetooth, M.2 interface |
| Security | Security (Kensington Type) Lock Slot Intel PTT (Platform Trust Technology) |
| Power System | Embedded Polymer Smart Lithium-Ion battery pack 73WH Full-Range AC-in 100~240V, 50~60Hz, 90W AC Adapter, DC output 19V, 4.74A |
| OS Support | Windows 11 (64-bit) |
| Certificates | Windows 11 (64-bit) Logo HDMI Logo |
| Weight and Dimensions | 3.86 LBs including 73WH Battery Pack 14.10″ (w) x 10.18″ (d) x 0.71″ (h) |
| Other Features | Metal top and bottom case Built-in 1.0M HD Video Camera FlexiCharger MIL-STD 810H |
| Specifications are subject to change without notice |
